Eaton: Training on Pressure Valves Including Relief Valves and Pressure Reducing Valves

Max

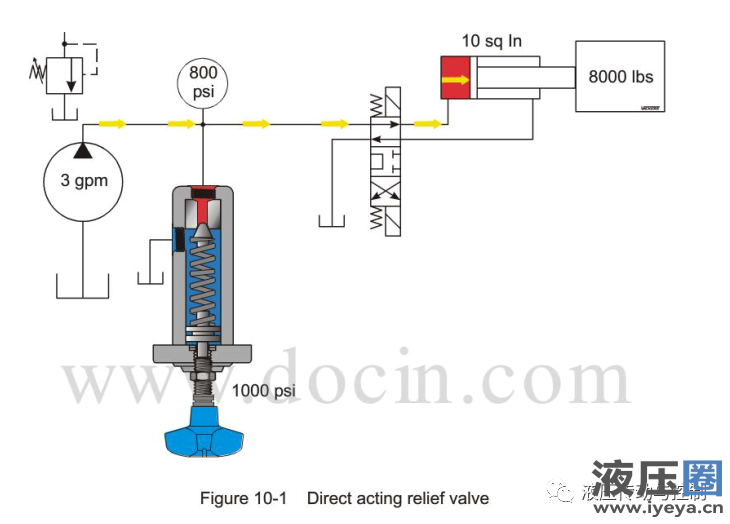

Direct-acting relief valve

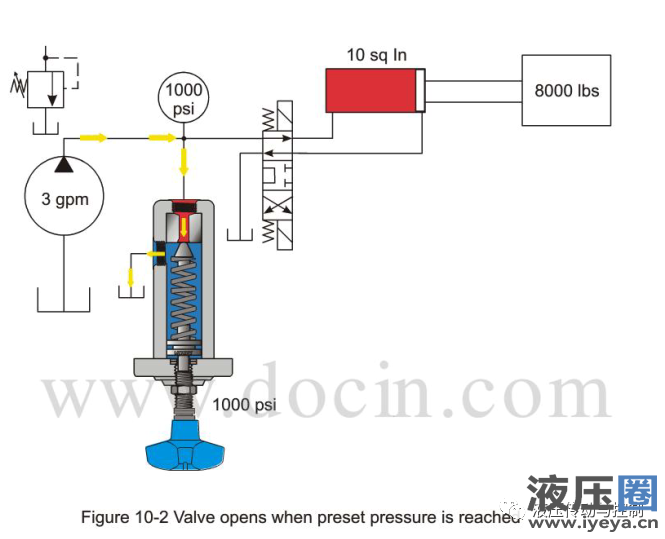

The valve opens when the preset pressure is reached

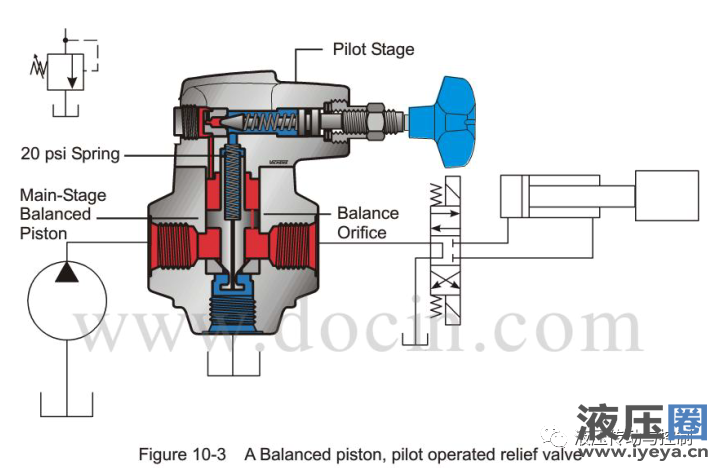

Pilot-operated relief valve

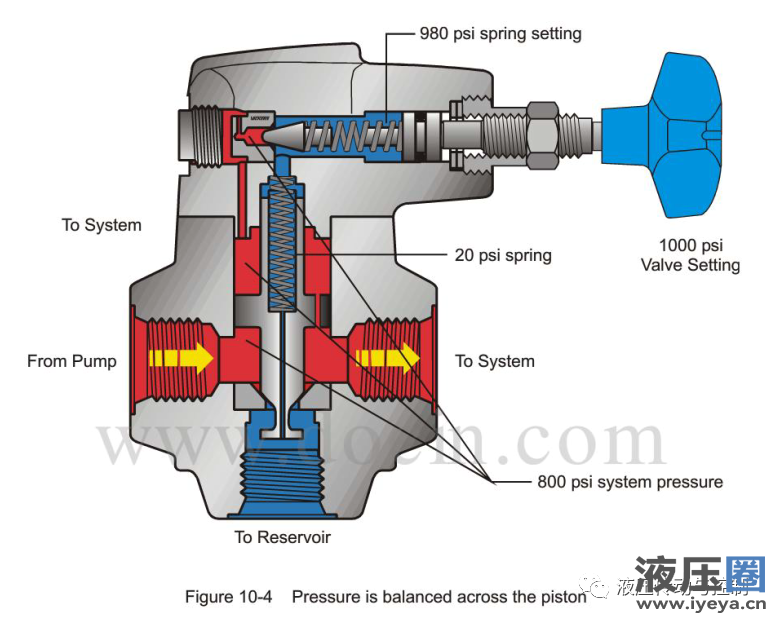

Pressure is balanced by the plunger (valve core)

The pilot valve opens when the pilot stage pressure reaches the set value

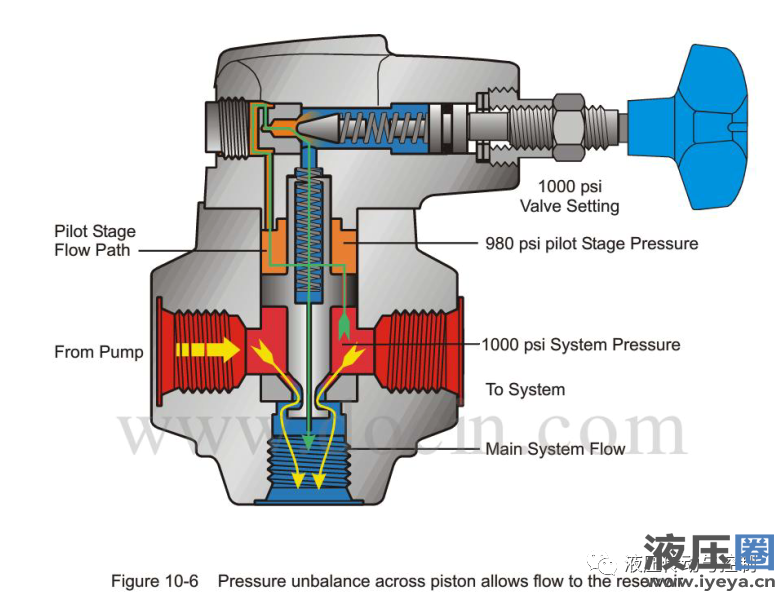

Pressure relieves to the oil tank

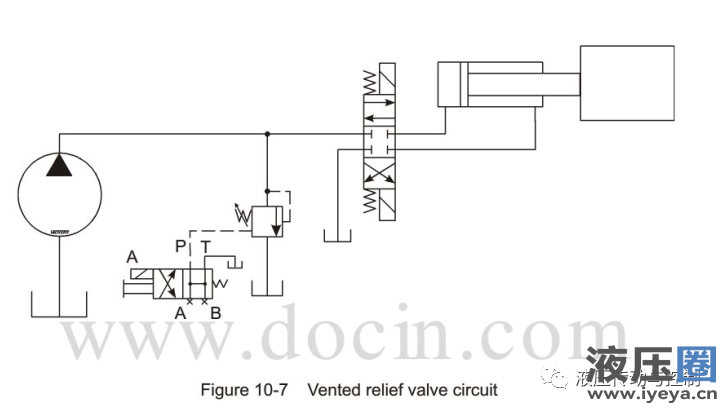

Relief valve unloading circuit

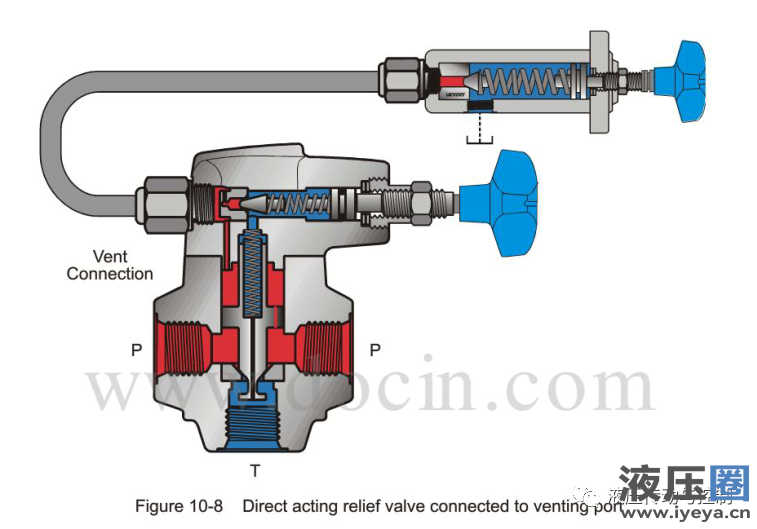

he direct-acting relief valve is connected for unloading

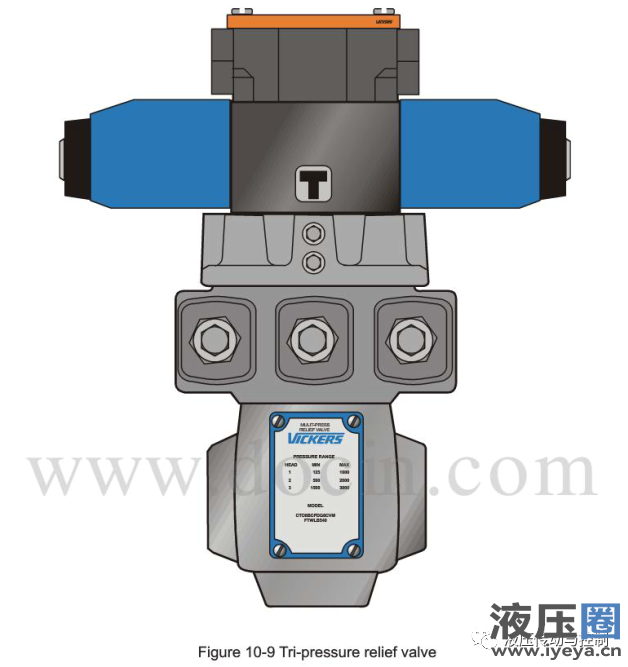

Three-stage pressure relief valve

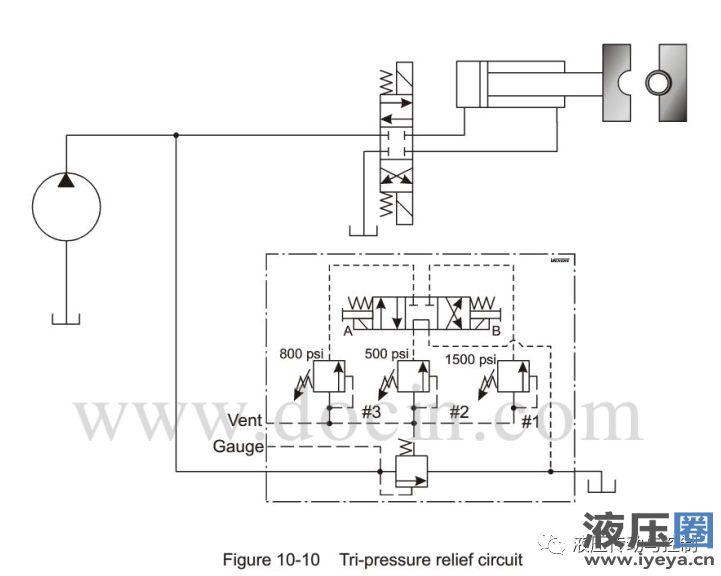

Three-stage pressure relief valve circuit

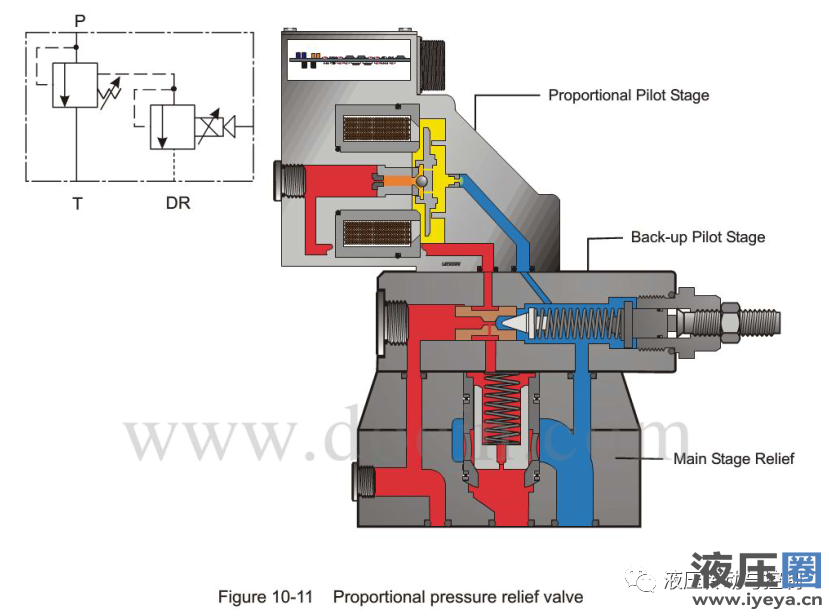

Proportional relief valve

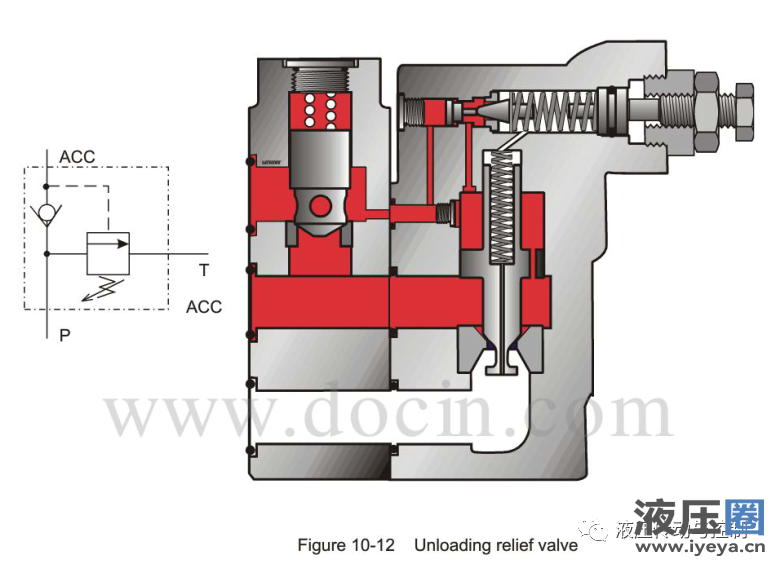

Unloading relief valve

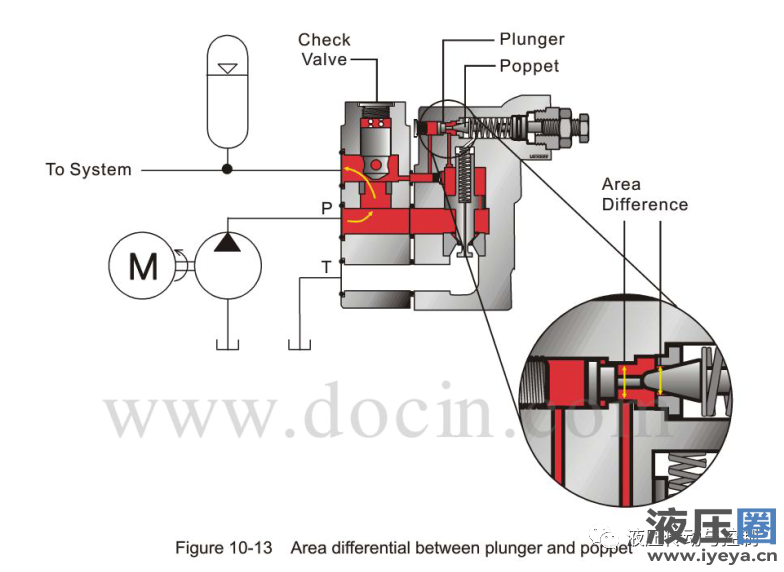

Area difference between the plunger and the valve seat

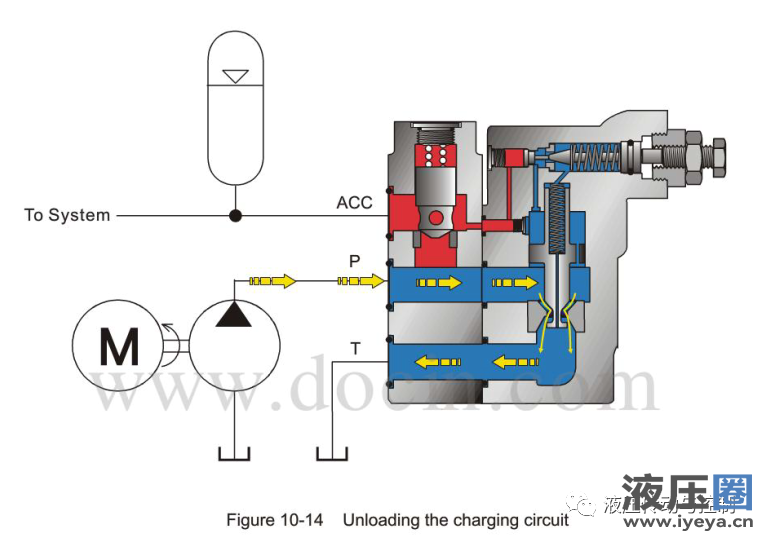

Unloading circuit

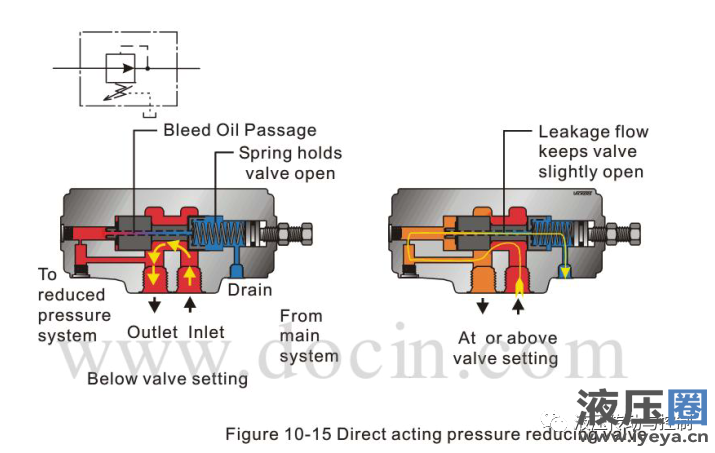

Direct-acting pressure reducing valve

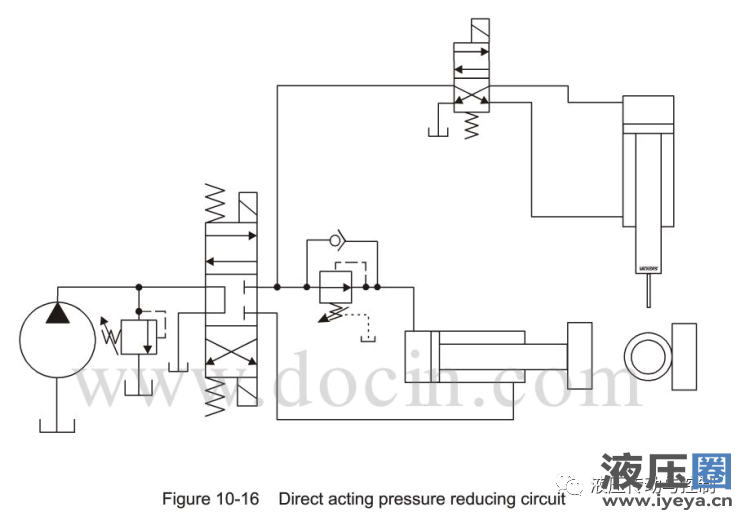

Direct-acting pressure reducing valve circuit

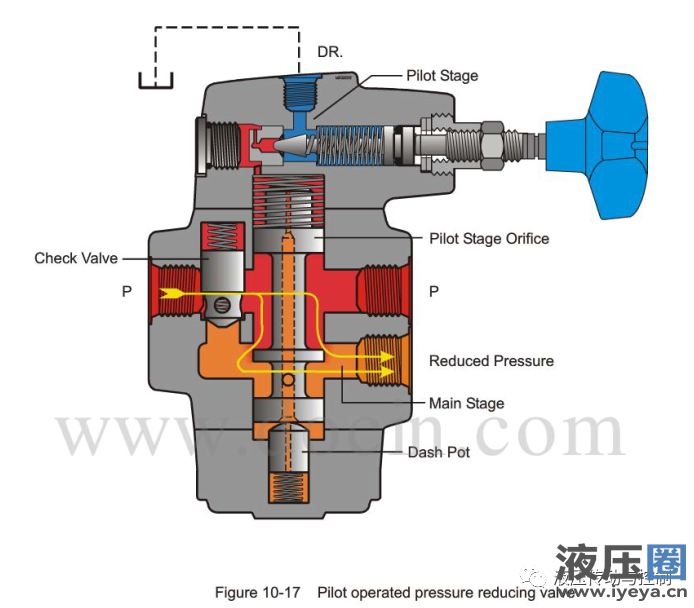

Pilot-operated pressure reducing valve

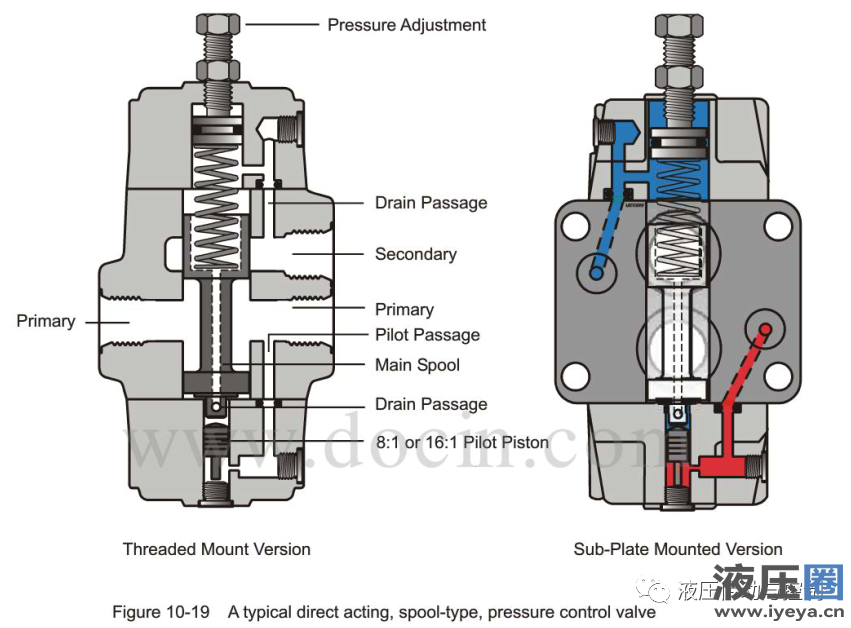

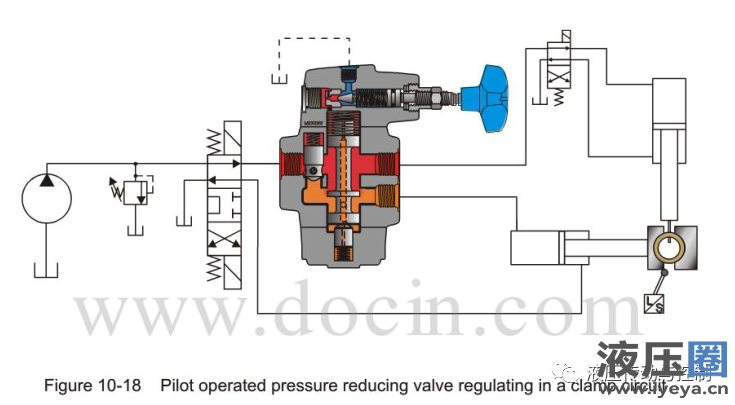

Typical direct-acting, spool-type pressure control valve

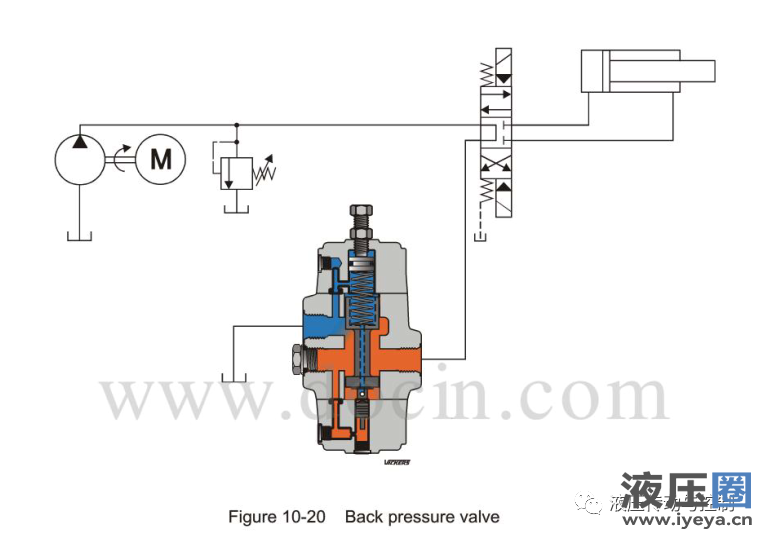

Back pressure valve

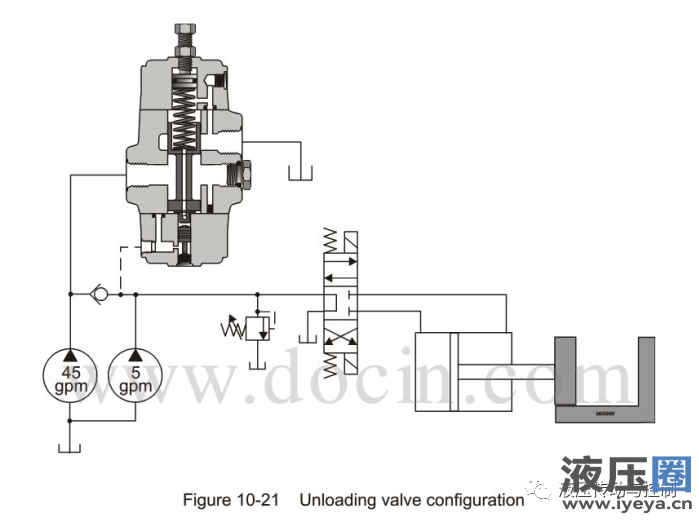

Unloading valve configuration

Unloading valve configuration

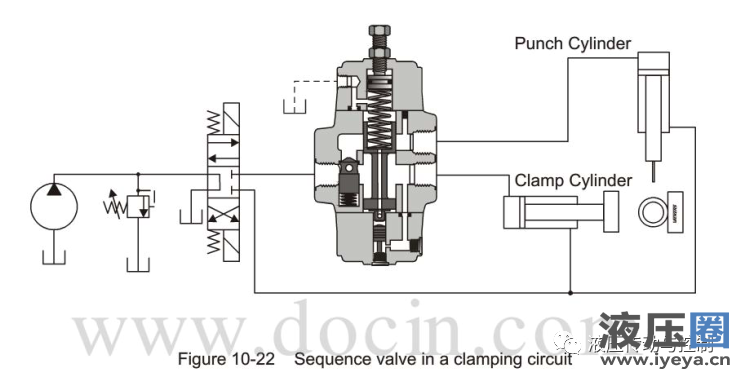

The sequence valve is applied to the clamping unit

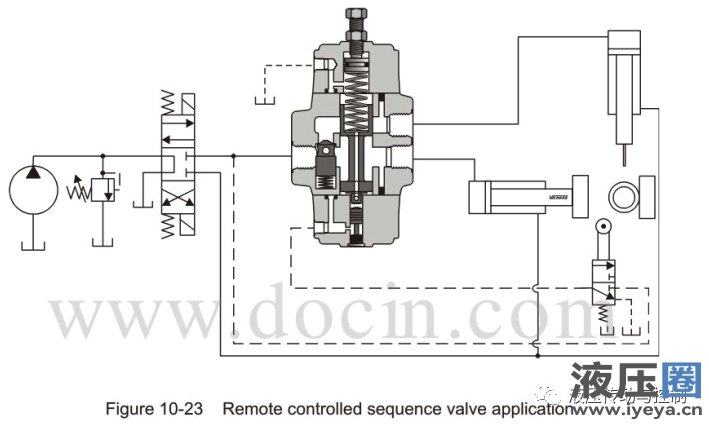

Remotely controlled sequence valve

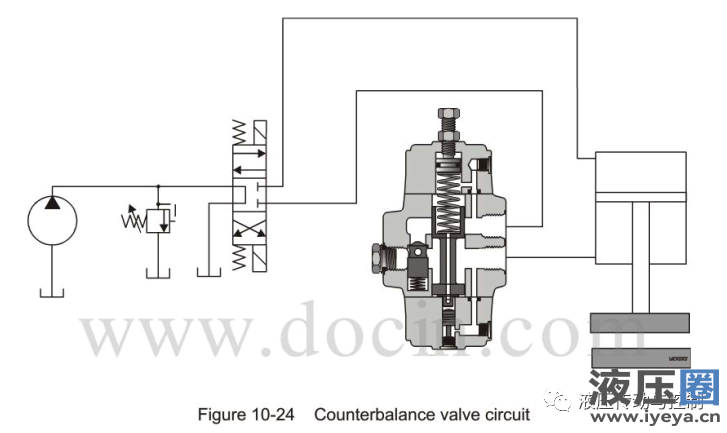

 Counterbalance valve circuit

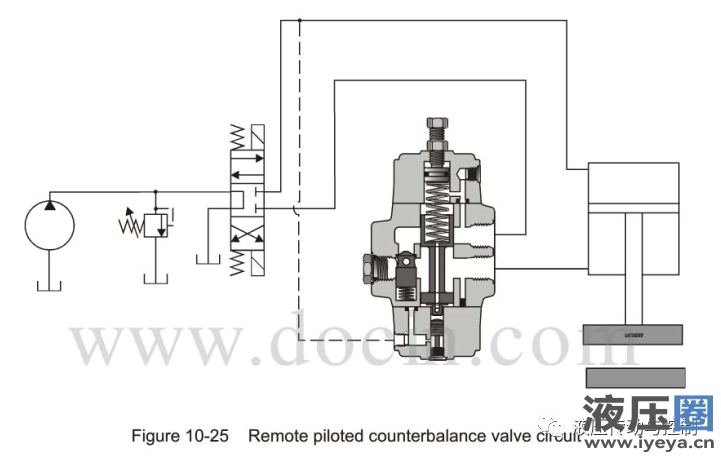

Remotely controlled counterbalance valve circuit

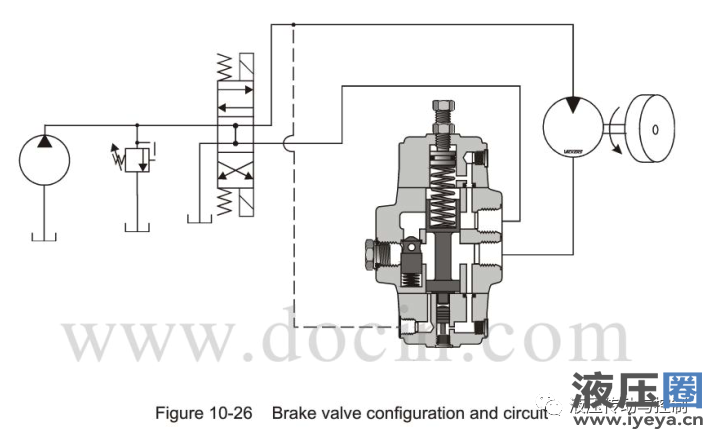

Braking circuit
